VIPA software

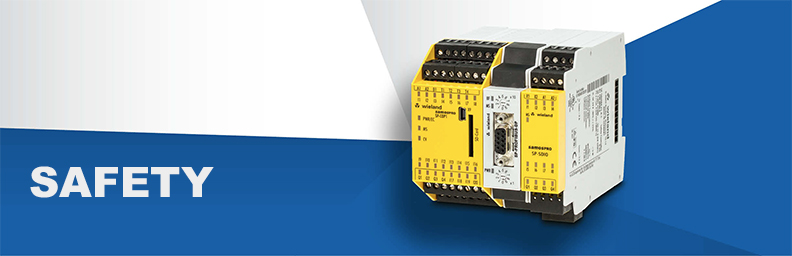

VIPA Safety

SAFE CPU Wieland programmabile con semplice SW gratuito; la SAFE CPU viene vista come nodo ProfiBus/PROFINET o comunica via CANopen, ModbusTCP con la CPU VIPA

Peculiarità e vantaggi

  • Certificazione PLe/Kat.4(ISO 13849-1) e SIL3 (IEC 62061),
  • fino a 96 SAFE input e 48 SAFE output ogni CPU,
  • tempo di reazione max 8 ms,
  • fino a 4 SAFE CPU collegabili.







R119000300 samosPRO SP-SDIO84-P1-K-A
samosPRO, IO-module with 8 input/4 solid state output, screw clamp terminal pluggable
R119000400 samosPRO SP-SDIO84-P1-K-C
samosPRO, IO-module with 8 input/4 solid state output, spring clamp terminal pluggable
R119000500 samosPRO SP-SDI8-P1-K-A
samosPRO, IN-module with 8 input, screw clamp terminal pluggable
R119000600 samosPRO SP-SDI8-P1-K-C
samosPRO, IN-module with 8 input, spring clamp terminal pluggable
R119001900 samosPRO SP-PROFIBUS-DP
samosPRO buscoupling modul for PROFIBUS-DP
R119002100 samosPRO SP-CANopen samosPRO gateway for CANopen
R119002100 safeRELAY SNE 4024K-A
Output expansion unit, 2x2 enabling current paths, 2x1 signalling outputs, DC 24 V, screw-terminals pluggable
R119010000 samosPRO SP COP-CARD memory card
R119011100 samosPRO SP COP1-A Safety Controller 24IO, (20DI+4DO) mors. vite
R119011200 samosPRO SP COP-1C Safety Controller 24IO, (20DI+4DO) mors. molla
R119012100 samosPRO SP COP2-EN-A Safety Controller 24IO, (16DI + 4DO + 4DIO), Eth, mors. vite
R119012200 samosPRO SP COP2-EN-C Safety Controller 24IO, (16DI + 4DO + 4DIO), Eth, mors. molla
R119013100 samosPRO SP COP2-ENI-A Safety Controller 24IO, (16DI + 4DO + 4DIO), Ind.Eth, mors. vite
R119013200 samosPRO SP COP2-ENI-C Safety Controller 24IO, (16DI + 4DO + 4DIO), Ind.Eth, mors. molla
R119002100 samosPRO SP interf. CANopen
R119001900 samosPRO SP interf. Profibus DP

Downloads
